Mini Gamma

Here we provide you with part numbers, product descriptions and dimensions for our Mini Gamma Enclosure range.

Descriptions & Part Numbers

Enclosures
DescriptionCat ref.
2 Modules compatible with WAGO type 273 connector block
(not supplied).
GD102E
4 Modules E: 2 x 16 + 2 x 10mm²
(capacity to fit an additional 4 hole terminal bar on existing support)
GD104E
6 Modules E: 2 x 16 + 2 x 10mm²
(capacity to fit an additional two 4 hole terminal bars or one 7 hole terminal bar on existing support)
GD106E
8 Modules E: 3 x 16 + 4 x 10mm²
(capacity to fit an additional two 4 hole terminal bars or one 7 hole terminal bar on existing support)
GD108E
10 Modules E: 3 x 16 + 4 x 10mm²
(capacity to fit an additional three 4 hole terminal bars or two 7 hole terminal bars on existing support)
GD110E
Mini Gamma Plain Doors
For Cat ref.Cat ref.
GD102E
GP102P
GD104E
GP104P
GD106E
GP106P
GD108E
GP108P
GD110E
GP110P


Plain door with integrated handle (use of door increases IP rating to IP40)

Mini Gamma Transparent Doors
For Cat ref.Cat ref.
GD102E
GP102T
GD104E
GP104T
GD106E
GP106T
GD108E
GP108T
GD110E
GP110T


Transparent door with integrated handle (use of door increases IP rating to IP40)

Terminal Support (no terminals)
For Cat ref.Cat ref.
GD104E
GZ104S
GD106E
GZ106S
GD108E
GZ108S
GD110E
GZ110S
Terminals (63A Rating)
Cable capacityNeutral (blue) Cat ref.Earth (green) Cat ref.
2 x 16mm² + 2 x 10mm²
GZ04N
GZ04E
3 x 16mm² + 4 x 10mm²
GZ07N
GZ07E
Keylock
DescriptionCat ref.
Keylock for plain or transparent door
VZ313

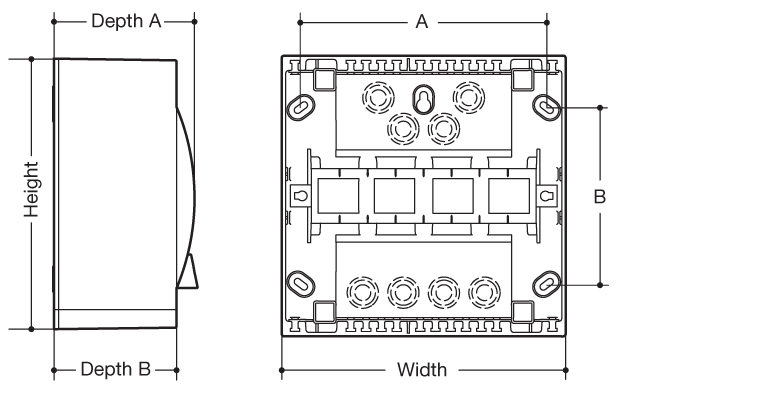

Mini Gamma Dimensions

Click here for larger image
Part No:Width (mm)Height (mm)Depth ADepth BFix Ctr
(mm) A		Fix Ctr
(mm) B
GD102E
55
160
82
94
N/A
N/A
GD104E
110
180
82
94
86
114
3GD106E
146
180
82
94
122
114
4GD108E
182
180
82
94
159
114
5GD110E
218
180
82
94
195
114
