Invicta 3 Panelboards
630A / 800A Incoming 125A / 250A Outgoing

Here you will find, features and benefits, image gallery, part numbers and descriptions, accessories, technical line drawings as well as dimensions for our 630A - 800A rated Invicta 3 panelboards.

Features & Benefits

Click to zoom
Click to zoom
Click to zoom
Click to zoom
Click to zoom
Click to zoom
Click to zoom
Click to zoom
Click to zoom
Click to zoom
Click to zoom
Click to zoom

Descriptions & Part Numbers

Invicta 3 Panelboards (630A / 800A Incoming 125A / 250A Outgoing)
DescriptionCat ref. Plain doorCat ref. Glazed door
8 Way
JF608B ¹
JF608BG ¹
12 Way
JF812B
JF812BG
18 Way
JF818B
JF818BG
Max 125A Outgoing Devices
Max incomer rating of 630A on this panelboard


¹ Max incomer rating of 630A on this panelboard


Invicta 3 Panelboards
DescriptionCat ref. Plain doorCat ref. Glazed door
6 Way (2 x 250A ¹ + 4 x 125A ²)
JF60204B ²
JF60204BG ²
8 Way (2 x 250A ¹ + 6 x 125A ²)
JF80206B
JF80206BG
8 Way (4 x 250A ¹ + 4 x 125A ²)
JF80404B
JF80404BG
12 Way (2 x 250A ¹ + 10 x 125A ²)
JF80210B
JF80210BG
12 Way (4 x 250A ¹ + 8 x 125A ²)
JF80408B
JF80408BG
18 Way (4 x 250A ¹ + 14 x 125A ²)
JF80414B
JF80414BG
18 Way (6 x 250A ¹ + 12 x 125A ²)
JF80612B
JF80612BG
Note: These boards will accept a range of MCCB frame sizes:
125A frame: 16-125A SP/TP
250A frame: 80-250A TP only


² Max incomer rating of 630A on this panelboard


Incomer Kits
DescriptionCat ref.
3 Pole 400A MCCB Incomer Kit 50kA
(Adjustable Thermal 0.63, 0.8, 1 x In) (Magnetic 5, 7, 9, 11 x In)
JF843BM
4 Pole 400A MCCB Incomer Kit 50kA
(Adjustable Thermal 0.63, 0.8, 1 x In) (Magnetic 5, 7, 9, 11 x In)
JF844BM
Select the required 800A rated panelboard (e.g JF80206BG) and add the suffix 800LBS e.g. JF80206BG800LBS
800LBS
4 Pole 400A Switch Disconnector Incomer
JF844BSW
3 Pole 630A MCCB Incomer Kit 50kA
(Adjustable Thermal 0.4 to 1 x In) (Magnetic 2.5 to 8 x In)
JF863BM
4 Pole 630A Switch Disconnector Incomer
JF864BSW ³
4 Pole 630A MCCB Incomer Kit 50kA
(Adjustable Thermal 0.4 to 1 x In) (Magnetic 2.5 to 8 x In)
JF864BM
800A Direct Connection Kit
JF884BD ³


³ Cable spreader box recommended

630A / 800A Rated Pan Assemblies
DescriptionCat ref.
JF608B Pan Assembly
JF608BPA *
JF812B Pan Assembly
JF812BPA
JF818B Pan Assembly
JF818BPA
JF80210B Pan Assembly
JF80210BPA
JF60204B Pan Assembly
JF60204BPA *
JF80206B Pan Assembly
JF80206BPA
JF80408B Pan Assembly
JF80408BPA
JF80414B Pan Assembly
JF80414BPA
JF80404B Pan Assembly
JF80404BPA
JF80612B Pan Assembly
JF80612BPA
* These pan assemblies are rated at 630A

DIN Extension Boxes (to fit JF4 & JF8 boards)
DescriptionCat ref. Plain doorCat ref. Glazed door
1 Row 34 Mod (300mm Height)
JF801E
JF801EG
2 Row 68 Mod (450mm Height)
JF803E
JF803EG
Cable Spreader Box (to fit JF4 & JF8 boards)
DescriptionCat ref.
Small (300mm Height) (Door not included)
JF805BE
Large (450mm Height) (Door not included)
JF806BE
Small Cable Spreader Box Door Kit
JF805DK
Large Cable Spreader Box Door Kit
JF806DK
JF8 Meter Pack
DescriptionCat ref.
Comprises of a digital multi function meter pulsed output, 3 x control circuit fuse carriers, wiring harness and CTs. The meter pack fits directly into the main board.
JF803BA
These kits fit into the main distribution board
Please consult Hager if meter pack is used with 630A direct connection kit.

Accessories
DescriptionCat ref.
Locking Kit for Incoming Device (All Ratings)
HXD039H
Touch Up Paint 30ml
JF95A
Allen Key Set
JF296A
End Plate for Invicta 3 400A Range
JFPLATE
Key lock with one key
JK222PK
x125 Frame 1 pole blank (3x blanks required per triple pole)
JN001BP
x250 Frame 3 pole blank (1x blank required per triple pole)
JF003BP
Outgoer Locking Kit (fits to toggle for up to 3 padlocks max ø 8mm²)
HXA039H

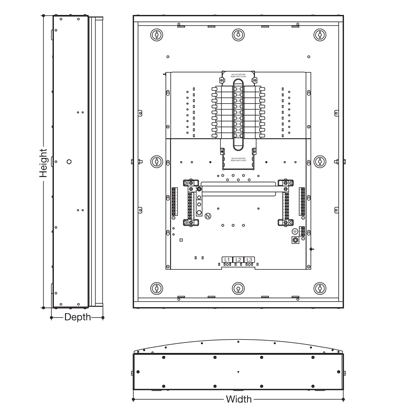

Invicta 3 Panelboard 630A / 800A Incoming 125A / 250A Outgoing Dimensions

Primary Boards Table
Part NumberHeight
(mm)		Width
(mm)		Depth
(mm)
JF406B/G
1250
900
220
JF408B/G
1250
900
220
JF412B/G
1400
900
220
JF416B/G
1550
900
220
JF808B/G
1250
900
220
JF812B/G
1400
900
220
JF818B/G
1700
900
220
JF80204B/G
1250
900
220
JF80206B/G
1250
900
220
JF80404B/G
1400
900
220
JF80210B/G
1700
900
220
JF80408B/G
1700
900
220
JF80414B/G
1700
900
220
JF80612B/G
1700
900
220
Terminals Table
Neutral EarthBond
2 x 9 x 50mm

2 x 9 x 50mm
1 x 3 x 50
2 x 12 x 50mm

2 x 12 x 50mm
1 x 3 x 50
2 x 18 x 50mm

2 x 18 x 50mm
1 x 3 x 50
2 x 24 x 50mm

2 x 24 x 50mm
1 x 3 x 50
2 x 12 x 50mm

2 x 12 x 50mm
1 x 3 x 50
2 x 18 x 50mm

2 x 18 x 50mm
1 x 3 x 50
2 x 27 x 50mm

2 x 27 x 50mm
1 x 3 x 50
2 x 6 x 50mm
2 x M8 Bolt
2 x 9 x 50mm
1 x 3 x 50
2 x 9 x 50mm
2 x M8 Bolt
2 x 12 x 50mm
1 x 3 x 50
2 x 6 x 50mm
4 x M8 Bolt
2 x 12 x 50mm
1 x 3 x 50
2 x 15 x 50mm
2 x M8 Bolt
2 x 18 x 50mm
1 x 3 x 50
2 x 12 x 50mm
4 x M8 Bolt
2 x 18 x 50mm
1 x 3 x 50
2 x 21 x 50mm
4 x M8 Bolt
2 x 27 x 50mm
1 x 3 x 50
2 x 18 x 50mm
6 x M8 Bolt
2 x 27 x 50mm
1 x 3 x 50
Extension Boxes Table
Part NumberHeightWidthDepth
JF801E/G
315
900
220
JF803E/G
465
900
220
JF805E
315
900
158
JF806E
465
900
158
