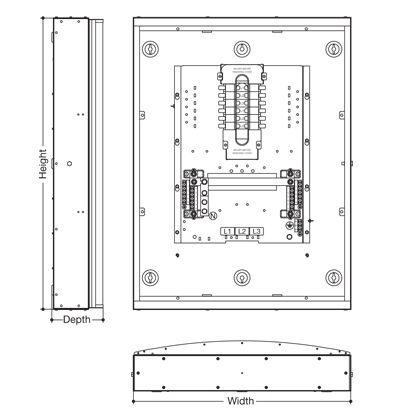

Invicta 3 Panelboards
250A Incoming 125A Outgoing

The Invicta 3 panelboard offers a wide choice of board ratings to suit all applications.

Ratings include;

250A (4 to 16 ways)
400A (6 to 16 ways)
630A (6 to 18 ways)
+ 800A hybrid (125A/250A outgoers)

3 and 4 pole TM MCCB / Non-Auto MCCB incomers with direct connection kits are available, giving an integrated installer benefit.

Available with plain or glazed door options.

The glazed door allows devices to be viewed without opening the door.

The contractor can benefit from an adaptable system on site with standard or tailored solutions.

Accessories such as key locks, cable extension boxes, meter packs and DIN rail boxes are available.

To aid mounting and levelling, the Invicta 3 panelboard has a central 5th triangle, along with the key hole slots provides an easy fitting of the board to the wall.

The pan assembly can be removed from the enclosure, this makes the product lighter making it easier to fix to the wall.

Pan assemblies can be purchased as a seperate part for fitting into cubicle switchboards.

The door and front cover can be removed, this aids the preparation for fixing to the wall and can be stored to avoid damage.

The retained hinge pins allow removal of the door without disturbing other enclosures.

The twin earth and neutral bars allow easy identification of Earth and Neutral conductors with corresponding phase conductors.

The Invicta 3 panelboard provides generous cable space at the top, bottom and sides of the board, also allowing sufficient space for cable bending radii.

At the top and bottom of the Invicta 3 panelboard, there are removable gland plates.

This allows the installer to prepare cable entries away from the board, preventing ingress of swarf etc.

Pre-wired meter packs are available for the Invicta 3 panelboards, the installer only has to fit the packs into the board, all internal wiring is included.
