Invicta 3 Panelboards
400A Incoming 125A Outgoing

Here you will find, features and benefits, image gallery, part numbers and descriptions, accessories, technical line drawings as well as dimensions for our 400A rated Invicta 3 panelboards.

Features & Benefits

Click to zoom
Click to zoom
Click to zoom
Click to zoom
Click to zoom
Click to zoom
Click to zoom
Click to zoom
Click to zoom
Click to zoom
Click to zoom
Click to zoom

Descriptions & Part Numbers

Invicta 3 Panelboards (400A Incoming 125A Outgoing)
DescriptionCat ref. Plain doorCat ref. Glazed door
6 Way
JF406B
JF406BG
8 Way
JF408B
JF408BG
12 Way
JF412B
JF412BG
16 Way
JF416B
JF416BG
Incomer Kits
DescriptionCat ref.
3 Pole 400A MCCB Incomer Kit (Adjustable 320-400A) 50kA
JF443BM
4 Pole 400A MCCB Incomer Kit (Adjustable 320-400A) 50kA
JF444BM
3 Pole 400A Non-Auto MCCB Incomer Kit
JF443BS
4 Pole 400A Non-Auto MCCB Incomer Kit
JF444BS
400A Direct Connection Kit
JF444BD
Pan Assemblies
DescriptionCat ref.
JF406B Pan Assembly
JF406BPA
JF408B Pan Assembly
JF408BPA
JF412B Pan Assembly
JF412BPA
JF416B Pan Assembly
JF416BPA
DIN Extension Boxes
DescriptionCat ref. Plain doorCat ref. Glazed door
1 Row 34 Mod (300mm Height)
JF801E
JF801EG
2 Row 68 Mod (450mm Height)
JF803E
JF803EG
Cable Spreader Box
DescriptionCat ref.
Small (300mm Height) (Door not included)
JF805BE
Large (450mm Height) (Door not included)
JF806BE
Small Cable Spreader Box Door Kit
JF805DK
Large Cable Spreader Box Door Kit
JF806DK
Meter Pack
DescriptionCat ref.
These kits fit into the main distribution board.
Please consult Hager if meter pack is used with 630A direct connection kit.

Comprises of a digital multi function meter, 3 x control circuit fuse carriers wiring
harness and CTs. The meter pack fits directly into the main board.
JF803BA
Accessories
DescriptionCat ref.
Locking Kit for Incoming Device (All Ratings)
HXD039H
Touch Up Paint 30ml
JF95A
Allen Key Set
JF296A
End Plate for Invicta 3 400A Range
JFPLATE
Key lock with one key
JK222PK
x125 Frame 1 pole blank (3x blanks required per triple pole)
JN001BP
x250 Frame 3 pole blank (1x blank required per triple pole)
JF003BP
Outgoer Locking Kit (fits to toggle for up to 3 padlocks max ø 8mm2)
HXA039H

Contained Palm Lugs for L.V. Circuit Breakers

Palm Lugs Table
Conductor Size
Flexible sqmm		Ø Stud mmØiBMNLdBag
qty.		Cat ref.
95
8
13.5
15.5
9
8
52.5
8.4
25
HA 19 B-M 8/15.5
120
8
15.2
19
14
9
60
8.4
25
HA 24 B-M 8/19

10
15.2
19
14
9
60
10.5
25
HA 24 B-M 10/19
150
8
16.7
19
18
9
70
8.4
25
HA 30 B-M 8/19

10
16.7
19
18
9
70
10.5
25
HA 30 B-M 10/19
185
10
19.2
24.5
18
9
77
10.5
25
HA 37 B-M 10/24.5
240
10
21.1
31
13
9
80
10.5
15
HA 48-M 10/31

12
21.1
31
16
12
86
13.2
15
HA 48-M 12/31

16
21.1
31
19
17
94
17
15
HA 48-M 16/31
300
10
23.7
31
16
12
95
10.5
10
HA 60 B-M 10/31

12
23.7
31
16
12
95
13.2
10
HA 60 B-M 12/31

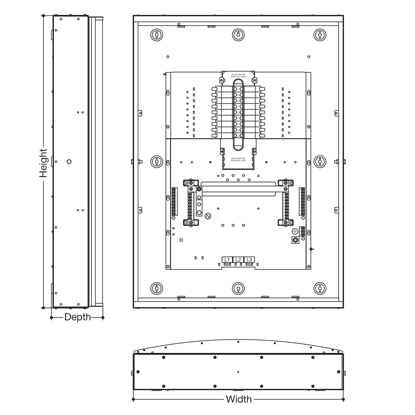

Invicta 3 Panelboard 400A Incoming 125A Outgoing Dimensions

Primary Boards Table
Part NumberHeight
(mm)		Width
(mm)		Depth
(mm)
JF406B/G
1265
900
220
JF408B/G
1265
900
220
JF412B/G
1415
900
220
JF416B/G
1565
900
220
JF808B/G
1265
900
220
JF812B/G
1415
900
220
JF818B/G
1715
900
220
JF80204B/G
1265
900
220
JF80206B/G
1265
900
220
JF80404B/G
1415
900
220
JF80210B/G
1715
900
220
JF80408B/G
1715
900
220
JF80414B/G
1415
900
220
JF80612B/G
1715
900
220
Extension Boxes Table
Part NumberHeightWidthDepth
JF801E/G
315
900
220
JF803E/G
465
900
220
JF805E
315
900
158
JF806E
465
900
158
Terminals Table
Neutral EarthBond
2 x 9 x 50mm

2 x 9 x 50mm
1 x 3 x 50
2 x 12 x 50mm

2 x 12 x 50mm
1 x 3 x 50
2 x 18 x 50mm

2 x 18 x 50mm
1 x 3 x 50
2 x 24 x 50mm

2 x 24 x 50mm
1 x 3 x 50
2 x 12 x 50mm

2 x 12 x 50mm
1 x 3 x 50
2 x 18 x 50mm

2 x 18 x 50mm
1 x 3 x 50
2 x 27 x 50mm

2 x 27 x 50mm
1 x 3 x 50
2 x 6 x 50mm
2 x M8 Bolt
2 x 9 x 50mm
1 x 3 x 50
2 x 9 x 50mm
2 x M8 Bolt
2 x 12 x 50mm
1 x 3 x 50
2 x 6 x 50mm
4 x M8 Bolt
2 x 12 x 50mm
1 x 3 x 50
2 x 15 x 50mm
2 x M8 Bolt
2 x 18 x 50mm
1 x 3 x 50
2 x 12 x 50mm
4 x M8 Bolt
2 x 18 x 50mm
1 x 3 x 50
2 x 21 x 50mm
4 x M8 Bolt
2 x 27 x 50mm
1 x 3 x 50
2 x 18 x 50mm
6 x M8 Bolt
2 x 27 x 50mm
1 x 3 x 50
