h3 MCCBs & Switch Disconnectors
Frame Size x160

Here you will find, features and benefits, part numbers, descriptions and accessories for our h3 MCCBs with frame size upto 160 and Switch Disconnectors ranges.

Features & Benefits

Integrated Padlocking
ID Window
Thermal Setting Access
¼ Turn Screw
Cable Path
Auxiliaries
Quick Connect Termination
Thermal Setting Positions
Faston Spade Connection
Electronic Setting
Simplified Settings
Neutral Setting

Descriptions & Part Numbers

MCCB x160 18kA (400/415V AC) - Single Pole
InCat ref.
16A
HDA014Z
20A
HDA018Z
25A
HDA023Z
32A
HDA030Z
40A
HDA038Z
50A
HDA048Z
63A
HDA061Z
80A
HDA078Z
100A
HDA098Z
125A
HDA123Z
Breaking capacity Ics: 18kA
Fixed thermal 1x In, fixed magnetic > 10x In

MCCB x160 18kA (400/415V AC) - Three Pole
InCat ref.
25A
HDA025U
40A
HDA040U
63A
HDA063U
80A
HDA080U
100A
HDA100U
125A
HDA125U
160A
HDA160U
Breaking capacity Ics: 18kA
Adjustable thermal 0.63 - 0.8 - 1x In, fixed magnetic > 10x In

MCCB x160 18kA (400/415V AC) - Four Pole
InCat ref.
63A
HDA064U
100A
HDA101U
125A
HDA126U
Breaking capacity Ics: 18kA
Adjustable thermal 0.63 - 0.8 - 1x In, fixed magnetic > 10x In

MCCB x160 25kA (400/415V AC) - Single Pole
InCat ref.
16A
HHA014Z
20A
HHA018Z
25A
HHA023Z
32A
HHA030Z
40A
HHA038Z
50A
HHA048Z
63A
HHA061Z
80A
HHA078Z
100A
HHA098Z
125A
HHA123Z
MCCB x160 25kA (400/415V AC) - Three Pole
InCat ref.
25A
HHA025U
40A
HHA040U
63A
HHA063U
80A
HHA080U
100A
HHA100U
125A
HHA125U
160A
HHA160U
Breaking capacity Ics: 20kA
Adjustable thermal 0.63 - 0.8 - 1x In, fixed magnetic > 10x In

Switch Disconnectors x160 - Three & Four Pole
InCat ref.
125A 3 Pole
HCA125Z
125A 4 Pole
HCA126Z
Suitable for AC22A / AC23A
Ue: 415V AC
Icw (1s): 2kA

Accessories - RCB Add-on Block
Description3P Cat ref.4P Cat ref.
Sensitivity - Adjustability 0.03A, 0.1A, 0.3A, 1A, 3A, 10A
Time Delay Settings - Instantaneous 60mA, 150ms, 300ms, 500ms & IS
HBA125H
HBA126H
Accessories - Auxiliary Contacts (AX, AL)
DescriptionCat ref.
1 Changeover Contact (ON/OFF), 250V AC/3A, 125V DC/0.4A, 1 NO + 1 NC AX
HXA021H
1 Changeover Alarm Contact, 250V AC/3A, 125V DC/0.4A, 1 NO + 1 NC AL
HXA024H
Accessories - Shunt Trip (SH)
DescriptionCat ref.
24V DC
HXA001H
48V DC
HXA002H
110V AC
HXA003H
220 - 240V AC
HXA004H
380 - 440V AC
HXA005H
Accessories - Undervoltage Release (UV)
DescriptionCat ref.
220 - 240V AC
HXA014H
380 - 450V AC
HXA015H
Accessories - Rotary Handles
DescriptionCat ref.
Direct rotary handle, max ø 6mm, Padlockable
HXA030H
Exended rotary handle, max ø 8mm, Padlockable
HXA031H
Accessories - Multi Padlock Adapter
DescriptionCat ref.
To mount on MCCB for handle locking for 3 padlocks, max ø 8mm
HXA039H
Accessories - Extended Connections
Description3P Cat ref.4P Cat ref.
Set of 4 extended connections for lug connection outgoing*
HYA013H
HYA013H
Set of 3 or 4 spreaders
HYA014H
HYA015H
* Use extended connection terminal cover HYA021H


Accessories - Interphase Barriers
Description3P Cat ref.4P Cat ref.
Set of 3, height: 50mm
HYA019H
HYA019H
Set of 3, height: 97mm
HYB019H
HYB019H
Accessories - Terminal Cover (1 Set)
Description3P Cat ref.4P Cat ref.
For extended connections
HYA021H
HYA022H
For spreaders
HYA023H
HYA024H
Short
HYA25H
HYA26H
Accessories - DIN Rail Adaptor
Description3P Cat ref.4P Cat ref.
DIN Rail Adaptor
HYA033H
HYA033H

x160 MCCBs, Switch Disconnectors Dimensions

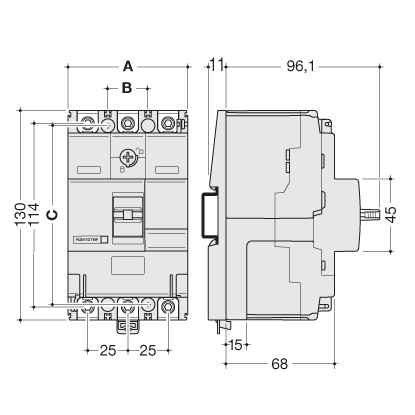

Dimensions MCCB x160
 A (mm)B (mm)C (mm)
1P
24.8
25
111
2P
49.5
25
111
3P
74.5
25
111
4P
99.5
25
111

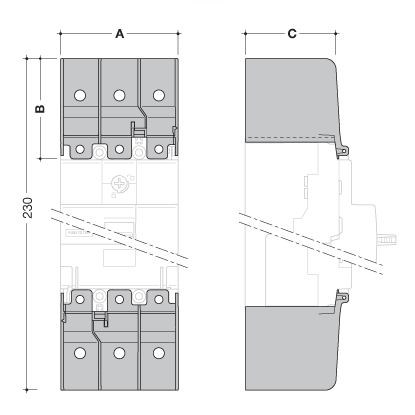

Terminal Covers Front Connected (for straight bars)
 A (mm)B (mm)C (mm)
1P
24.4
50
60.5
3P
74.5
50
60.5
4P
99.5
50
60.5

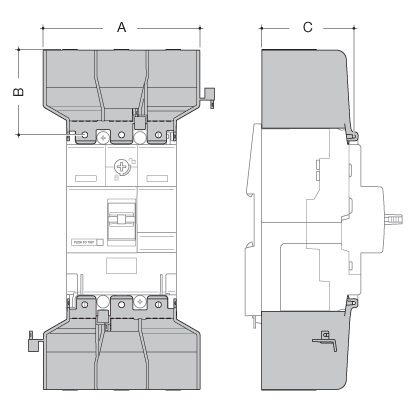

Terminal Cover for Extended Connections (spreaders)
 A (mm)B (mm)C (mm)
3P
106.5
50
60.5
4P
141.5
50
60.5
